SLX-0.1手動插板閥概述：
手動單雙向平板閘閥又稱為手動單雙向平板插板閥該閘閥結構簡單，重量輕，操作靈活，裝拆方便，采用優質碳素鋼制造，其強度高，性能好，使用壽命長：絲桿采用不銹鋼材料，減少外界粉塵影響。
該閘門主要由框架、絲桿螺母、手輪(鏈輪)、閘板組成，手輪（鏈輪）轉動，絲桿帶著絲桿螺母和閘板作水平方向的往復運動，達到閥門的啟閉目的。可廣泛適用于建材、冶金、礦山等行業粉塵料流量控制的管道上，是控制粉塵物料流量的理想設備。
This gate valve has simple construction,light weight and easy assembly &disassembly.Made in high-quality carbon steel,it also has high strength, excellent performance and long service life .The screw rod adopts stainless steel,reducing the ill influence of extemaldust. This gate valve is mainly made up of frame ,feed screw nut,hand wheel ,and valve plate.The hand wheel(chain wheel)rotates ,and the screw rod drives the fee screw nut and the valve plate to make horizontalaltemating movements ,so as to open and close the valve.It is a perfect appliance to control the flow of dust material .broadly applied in the pipeline of dust material flow control in the industries such as manufacture of building materials,metallurgy and mine.
SLX-0.1手動插板閥型號編制說明：
SLX-0.1手動插板閥產品示意圖：

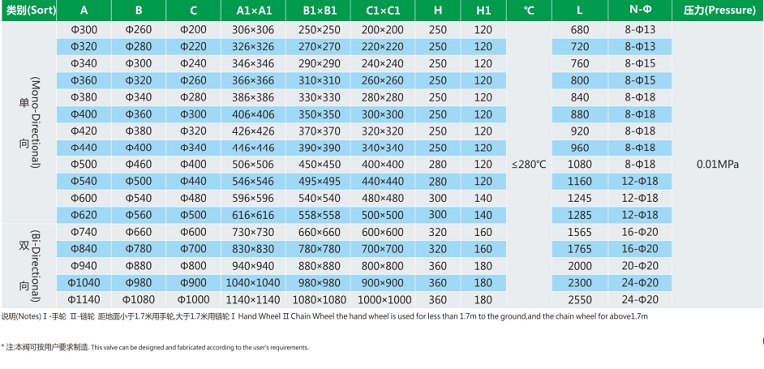

SLX-0.1手動插板閥主要技術參數：
